External display (visualization)

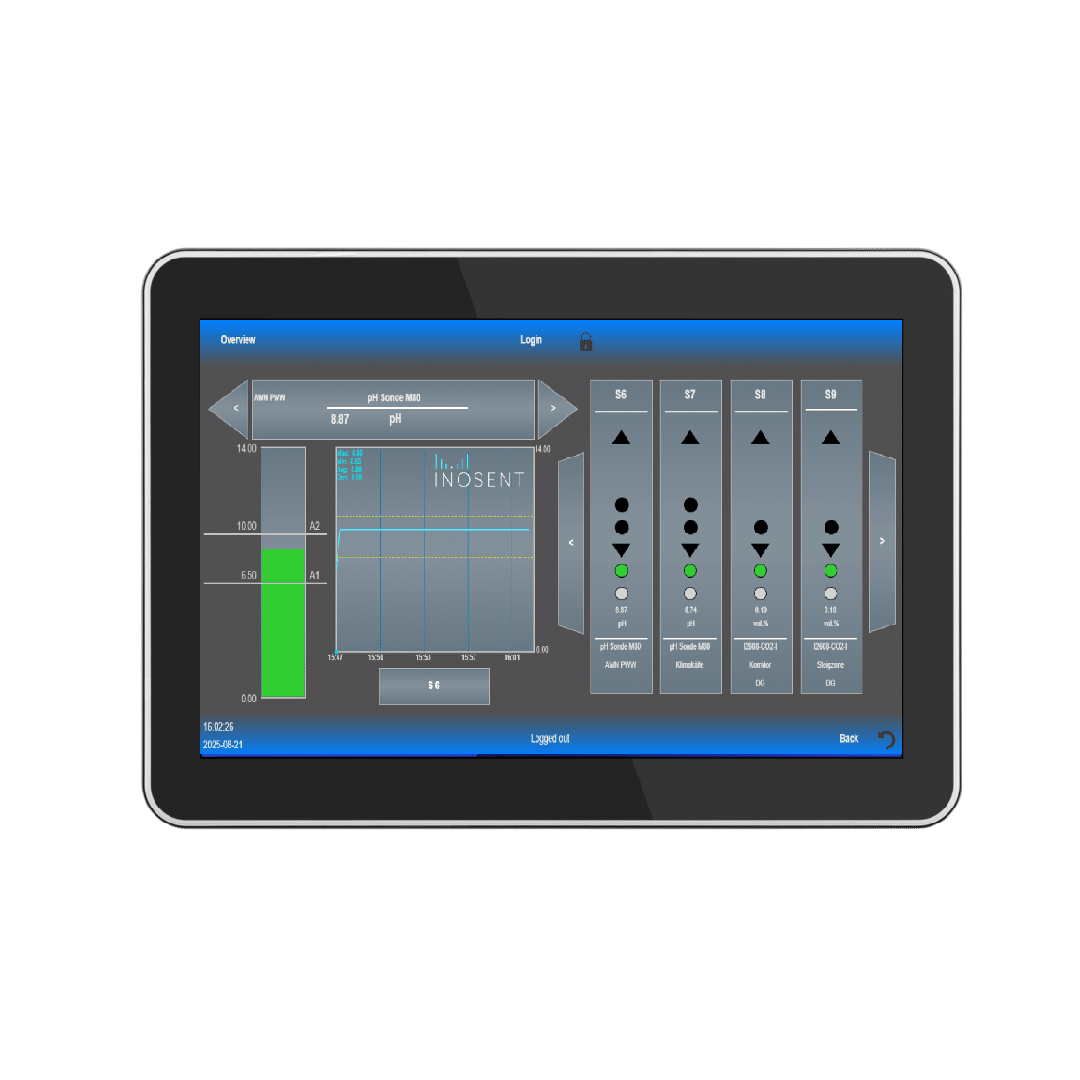

The 10.1-inch touch display is perfect for visualizing and operating your Gas monitors. Even extensive and complex systems are displayed in a clear, structured and intuitive way. This gives you full control at all times and allows you to react quickly and safely.

Details

Overview

Technical properties

10.1″ IPS touch display – razor-sharp (1280 × 800 px), high brightness (450 cd/m²)
Capacitive 10-point touch – fast, precise operation
Fanless & 24/7-capable – reliable for continuous operation
Android 13 – modern, flexible platform for your visualization
Power over Ethernet Plus (PoE+) – power and data supply via one cable
Mini-HDMI output & USB extensions – for external screens and modules
Compact, robust housing
VESA 75 mounting – simple wall or control cabinet mounting

Ground and connections

Dimensions: 240.9 x 159.7 x 24.4 mm

Weight: approx. 600g
